The centralized approach
No hidden costs
With conventional wallboxes, the unexpected costs usually arise after the initial quote, once the wallboxes have already been ordered. This is because, if all of them are to be put into operation simultaneously, a sub-distribution board and the associated load management system, necessary to prevent voltage spikes, are typically lacking.
At chargeBIG, the sub-distribution is an integral part of the charging solution.
Quick installation
The chargeCLUSTER sub-distribution board is delivered pre-wired; all that is required is to lay the cables to the charging points and connect the power supply.
Easy maintenance
Thanks to the centralized approach, all power electronics are integrated into a single system and have a modular design. This makes maintenance and repairs shorter and more cost-effective than with conventional charging solutions.
In the supply room

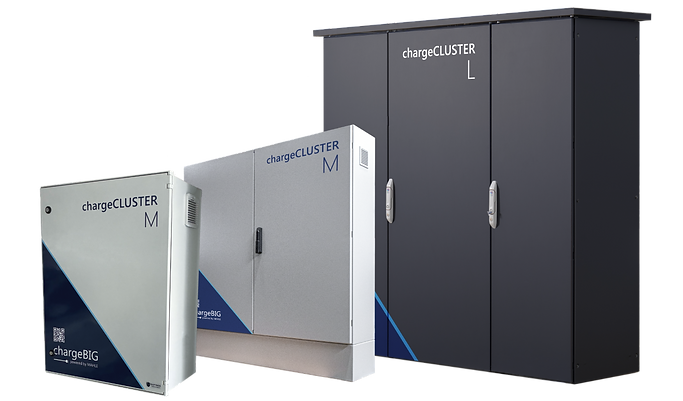

chargeCLUSTER
Pre-configured sub-distribution
In accordance with calibration law
(Recalibration in the field possible)
Dynamic or static load management
Interfaces:
Modbus TCP, OCPP 1.6J
Communication via LTE & LAN
Integration into the building management system
Integration into fire alarm system
Integrated RCD & DC fault current sensor
chargeCLUSTER
Schematic diagram for six charging points
Smart electrification in practice
chargeCLUSTER in practice for 100 charging points
Intelligent charging infrastructure thanks to a centralized approach
